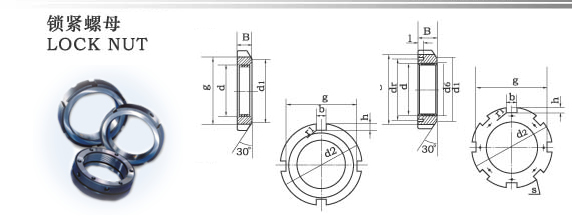

锁紧螺母 GB9160.3-88




锁紧螺母 GB9160.3-88
型号 基本尺寸（mm） 重量(kg)
螺纹D d2 B b h
KM00 M10X0.75 18 4 3 2 0.005
KM01 M12X1 22 4 3 2 0.007
KM02 M15X1 25 5 4 2 0.010
KM03 M17X1 28 5 4 2 0.013
KM04 M20X1 32 6 4 2 0.019
KM05 M25X1.5 38 7 5 2 0.025
KM06 M30X1.5 45 7 5 2 0.043
KM07 M35X1.5 52 8 5 2 0.053
KM08 M40X1.5 58 9 6 2.5 0.085
KM09 M45X1.5 65 10 6 2.5 0.119
KM10 M50X1.5 70 11 6 2.5 0.148
KM11 M55X2 75 11 7 3 0.158
KM12 M60X2 80 11 7 3 0.174
KM13 M65X2 85 12 7 3 0.203
KM14 M70X2 92 12 8 3.5 0.242
KM15 M75X2 98 13 8 3.5 0.287
KM16 M80X2 105 15 8 3.5 0.397
KM17 M85X2 110 16 8 3.5 0.451
KM18 M90X2 120 16 10 4 0.556
KM19 M95X2 125 17 10 4 0.658
KM20 M100X2 130 18 10 4 0.698
KM21 M105X2 140 18 12 5 0.845
KM22 M110X2 145 19 12 5 0.965
KM23 M115X2 150 19 12 5 1.01
KM24 M120X2 155 20 12 5 1.08
KM25 M125X2 160 21 12 5 1.19
KM26 M130X2 165 21 12 5 1.25
KM27 M135X2 175 22 14 6 1.55
KM28 M140X2 180 22 14 6 1.56
KM29 M145X2 190 24 14 6 2.00
KM30 M150X2 195 24 14 6 2.03
KM31 M155X3 200 25 16 7 2.21
KM32 M160X3 210 25 16 7 2.43
KM33 M165X3 210 26 16 7 2.59
KM34 M170X3 220 26 16 7 2.80
KM36 M180X3 230 27 18 8 3.07
KM38 M190X3 240 28 18 8 3.39
KM40 M200X4 250 29 18 8 3.69
KM44 Tr220X4 280 32 20 10 5.20
KM48 Tr240X4 300 34 20 10 5.95
KM52 Tr260X4 330 36 24 12 8.08
KM56 Tr280X4 350 38 24 12 9.05
KM60 Tr300X4 380 40 24 12 11.8
KM64 Tr320X5 400 42 24 12 13.1
KM68 Tr340X5 440 55 28 15 23.1
KM72 Tr360X5 460 58 28 15 25.1
KM76 Tr380X5 490 60 32 18 30.9
KM80 Tr400X5 520 62 32 18 36.9
KM84 Tr420X5 540 70 32 18 43.5
KM88 Tr440X5 560 70 36 20 45.3
KM92 Tr460X5 580 75 36 20 50.4
KM96 Tr480X5 620 75 36 20 62.2
KM500 Tr500X5 630 80 40 23 63.3
KM510 Tr510X6 650 80 40 23
KM530 Tr530X6 670 80 40 23
KM550 Tr550X6 700 80 40 23
KM560 Tr560X6 710 85 45 25
KM600 Tr600X6 750 85 45 25
KM630 Tr630X6 800 95 50 28
KM670 Tr670X6 850 106 50 28
KM710 Tr710X7 900 106 55 30
KM750 Tr750X7 950 112 60 34
KM800 Tr800X7 1000 112 60 34
KM850 Tr850X7 1060 118 70 38
KM900 Tr900X7 1120 125 70 38
KM950 Tr950X8 1170 125 70 38
KM1000 Tr1000X8 1240 125 70 38
KM1060 Tr1060X8 1300 125 70 38
