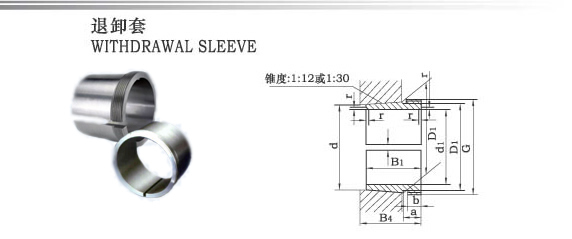

退卸套 JB/T7919.2-1999
退卸套对装在轴端，经常拆卸、规格较大的圆锥孔轴承（调心球轴承，调心滚子轴承，双列圆柱滚子轴承）装拆维修特别方便，广泛用于轻工、冶金、轧机等机械设备上。 |
|
| |
|
|
|
|
|
AH3系列退卸套基本尺寸和参数 |
| 型号 |
基本尺寸（mm） |
配套轴承型号 |
重量(kg) |
| d |
d1 |
B1 |
d2 |
调心球轴承 |
调心滚子轴承 |
| AH308 |
40 |
35 |
29 |
M45X1.5 |
111308 111508 |
1113508 113308 |
0.09 |
| AH309 |
45 |
40 |
31 |
M50X1.5 |
111509 111509 |
1113509 113309 |
0.109 |
| AH310 |
50 |
45 |
35 |
M55X2 |
111310 111510 |
1113510 113310 |
0.137 |
| AH311 |
55 |
50 |
37 |
M60X2 |
111311 111511 |
1113511 113311 |
0.161 |
| AH312 |
60 |
55 |
40 |
M65X2 |
111312 111512 |
1113512 113312 |
0.189 |
| AH313 |
65 |
60 |
42 |
M75X2 |
111313 111513 |
1113513 113313 |
0.253 |
| AH314 |
70 |
65 |
43 |
M80X2 |
111314 111514 |
1113514 113314 |
0.280 |
| AH315 |
75 |
70 |
45 |
M85X2 |
111315 111515 |
1113515 113315 |
0.313 |
| AH316 |
80 |
75 |
48 |
M90X2 |
111316 111516 |
1113516 113316 |
0.365 |
| AH317 |
85 |
80 |
52 |
M95X2 |
171131 111517 |
1113517 113317 |
0.429 |
| AH318 |
90 |
85 |
53 |
M100X2 |
118131 111518 |
1113518 113318 |
0.416 |
| AH319 |
95 |
90 |
57 |
M105X2 |
111931 111519 |
1113519 113319 |
0.532 |
| AH320 |
100 |
95 |
59 |
M110X2 |
111320 111520 |
1113520 113320 |
0.582 |
| AH322 |
110 |
105 |
63 |
M120X2 |
111322 111522 |
1113522 113322 |
0.663 |
| AH324 |
120 |
115 |
69 |
M130X2 |
111324 111524 |
1113524 113324 |
0.875 |
| AH326 |
130 |
126 |
74 |
M140X2 |
|
|
1.03 |
| AH328 |
140 |
135 |
77 |
M150X2 |
|
|
1.15 |
| AH330 |
150 |
145 |
83 |
M165X3 |
|
|
1.55 |
| AH332 |
160 |
150 |
88 |
M180X3 |
|
|
2.73 |
| AH334 |
170 |
160 |
93 |
M190X3 |
|
|
3.19 |
|
AH240系列退卸套基本尺寸和参数 |
| 型号 |
螺纹 |
尺 寸（mm） |
螺母型号 |
适用轴承 |
| d |
d1 |
B1 |
调心滚子轴承 |
| AH24024 |
M125X2 |
120 |
115 |
73 |
kM25 |
24024K30 |
| AH24026 |
M1352 |
13 |
125 |
73 |
kM27 |
24026K30 |
| AH24028 |
M145X2 |
140 |
135 |
83 |
kM29 |
24028K30 |
| AH24030 |
M155X3 |
150 |
145 |
90 |
kM31 |
24030K30 |
| AH24032 |
M170X3 |
160 |
150 |
95 |
kM34 |
24032K30 |
| AH24034 |
M180X3 |
170 |
160 |
106 |
kM36 |
24034K30 |
| AH24036 |
M190X3 |
180 |
170 |
116 |
kM38 |
24036K30 |
| AH24038 |
M200X3 |
190 |
180 |
118 |
kM40 |
24038K30 |
| AH24040 |
Tr210X4 |
200 |
190 |
127 |
HM42 |
24040K30 |
| AH24044 |
Tr230X4 |
220 |
200 |
138 |
HM46 |
24044K30 |
| AH24048 |
Tr250X4 |
240 |
220 |
138 |
HM50 |
24048K30 |
| AH24052 |
Tr280X4 |
260 |
240 |
162 |
HM56 |
24052K30 |
| AH24056 |
Tr300X4 |
280 |
260 |
162 |
HM60 |
24056K30 |
| AH24060 |
Tr320X5 |
300 |
280 |
184 |
HM64 |
24060K30 |
| AH24064 |
Tr340X4 |
320 |
300 |
184 |
HM68 |
24064K30 |
| AH24068 |
Tr360X5 |
340 |
320 |
206 |
HM72 |
24068K30 |
| AH24072 |
Tr380X5 |
360 |
340 |
206 |
HM76 |
24072K30 |
| AH24076 |
Tr400X5 |
380 |
360 |
208 |
HM80 |
24076K30 |
| AH24080 |
Tr420X5 |
400 |
380 |
228 |
HM84 |
24080K30 |
| AH24084 |
Tr440X5 |
420 |
400 |
230 |
HM88 |
24084K30 |
| AH24088 |
Tr460X5 |
440 |
420 |
242 |
HM92 |
24088K30 |
| AH24092 |
Tr480X5 |
460 |
440 |
250 |
HM96 |
24092K30 |
|
|
